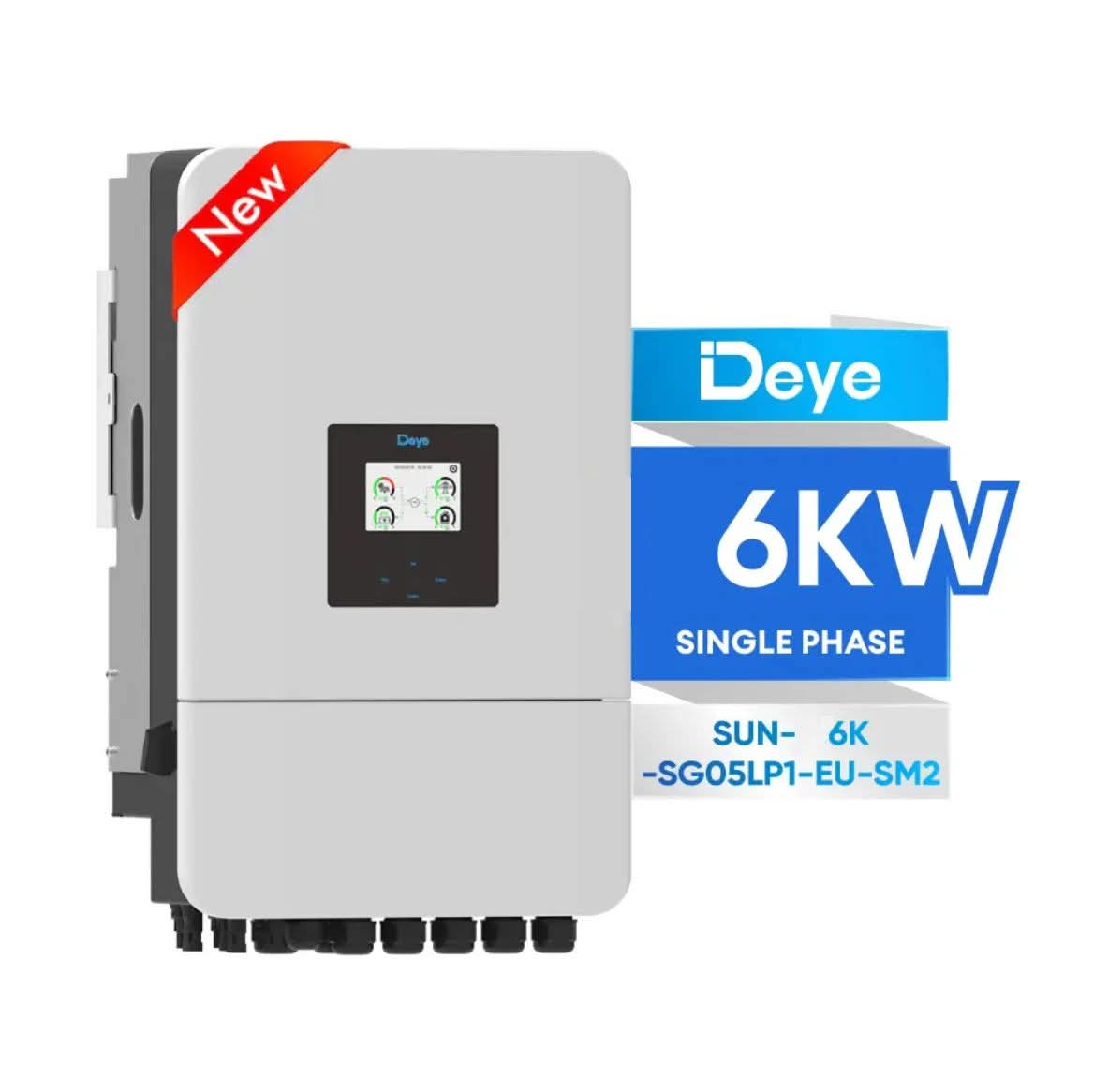

Deye 6KW Hybrid Inverter

Product Code:  Deye 6 kw
Category:  Hybrid Solar Inveter
Brand:  Deye

Product Color :

Product Size :

Price:  ৳ 135000 ৳ 150000
Quantity:
Products Description
Model
SUN-6K-SG04LP1
-EU-SM2
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range (V)
40-60
Max. Charging Current (A)
135
Max. Discharging Current (A)
135
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Input
1
PV String Input Data
Max. PV Access Power (W)
12000
Max. PV Input Power (W)
9600
Max. PV Input Voltage (V)
500
Start-up Voltage (V)
125
MPPT Voltage Range (V)
150-425
Rated PV Input Voltage (V)
370
Max. Operating PV Input Current (A)
18+18
Max. Input Short-Circuit Current (A)
27+27
No. of MPP Trackers/
No. of Strings MPP Tracker
2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power (W)
6000
Max. AC Input/Output Apparent Power (VA)
6600
Rated AC Input/Output Current (A)
27.3/26.1
Max. AC Input/Output Current (A)
30/28.7
Max. Continuous AC Passthrough (grid to load) (A)
40
Peak Power (off-grid) (W)
2 times of rated power, 10s
Power Factor Adjustment Range
0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)
220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)
50/45-55, 60/55-65
Grid Connection Form
L+N+PE
Total Current Harmonic Distortion THDi
<3% (of nominal power)
DC Injection Current
<0.5% In
Efficiency
Max. Efficiency
97.6%
Euro Efficiency
96.5%
MPPT Efficiency
>99%
General Data
Operating Temperature Range (℃)
-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000m
Noise (dB)
<30
Ingress Protection(IP) Rating
IP 65
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II(DC), OVC III(AC)

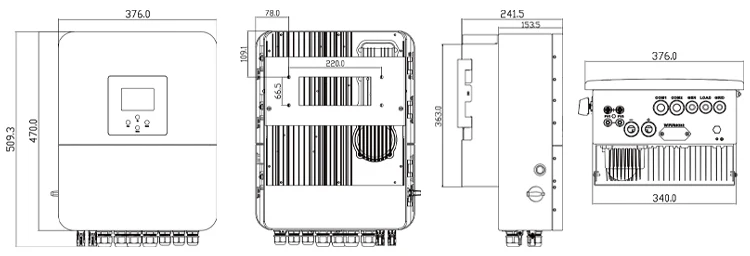

Cabinet Size (WxHxD mm)
376×470×241.5 (Excluding Connectors and Brackets)
Weight (kg)
19
Type of Cooling
Natural Cooling
Warranty
5 Years/10 Years
the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
