Growatt 25 KW On Grid inverter

Product Code:  Growatt 25 KW
Category:  Hybrid Solar Inveter
Brand:  GROWATT

Product Color :

Price:  ৳ 200000 ৳ 210000
Quantity:
Specifications
Datasheet
MID15KTL3-X
MID17KTL3-X
MID20KTL3-X
MID22KTL3-X
MID25KTL3-X
Input data (DC)
Max. recommended PV power (for module STC)
22500W
25500W
30000W
33000W
37500W
Max. DC voltage
1100V
Start Voltage
250V
Nominal voltage
580V
MPPT voltage range
160V-1000V
No. of MPP trackers
2
No. of PV strings per MPP tracker
2
2/3
Max. input current per MPPT tracker*
27A
27A/40.5A
Max. short circuit current per MPPT
33.8A
33.8A/50.7A
Output data (AC)
Rated AC output power
15000W
17000W
20000W
22000W
25000W
Max. AC apparent power
16600VA
18800VA
22000VA
24400VA
27700VA
Nominal AC voltage(range*)
220V/380V, 230V/400V (340-440V)
AC grid frequency;(range*)
50/60 Hz (45-55Hz/55-65 Hz)
Max. output current
24.2A
27.4A
31.9A
35.5A
40.2A
Adjustable power factor
0.8leading…0.8lagging
THDi
<3%
AC grid connection type
3W+N+PE
Efficiency
Max.efficiency
98.75%
European efficiency
98.6%
MPPT efficiency
99.9%
General data
Dimensions (W / H / D)
525/395/222mm
Weight
23kg
Operating temperature range
-25 °C ... +60 °C
Self-Consumption (night)
<1W
Topology
Transformerless
Cooling
Smart air cooling
Protection degree
IP65
Relative Humidity
0~100%
Altitude
4000m
DC connection
H4/MC4(Optional)
AC connection
Cable gland+OT terminal
Display
OLED+LED/WIFI+APP
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
Yes/Yes /Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years
Yes /Optional

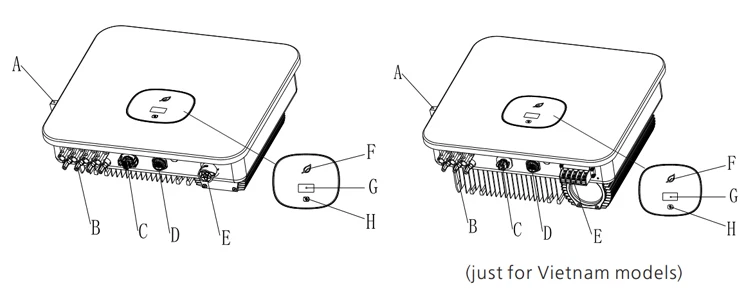

The appearance instructions are as follows:
No.
Name
No.
Name
A
DC switch
E
AC terminal
B
PV terminal
F
LED indicator
C
RS485 port
G
LCD screen
D
USB port
H
Touch button
