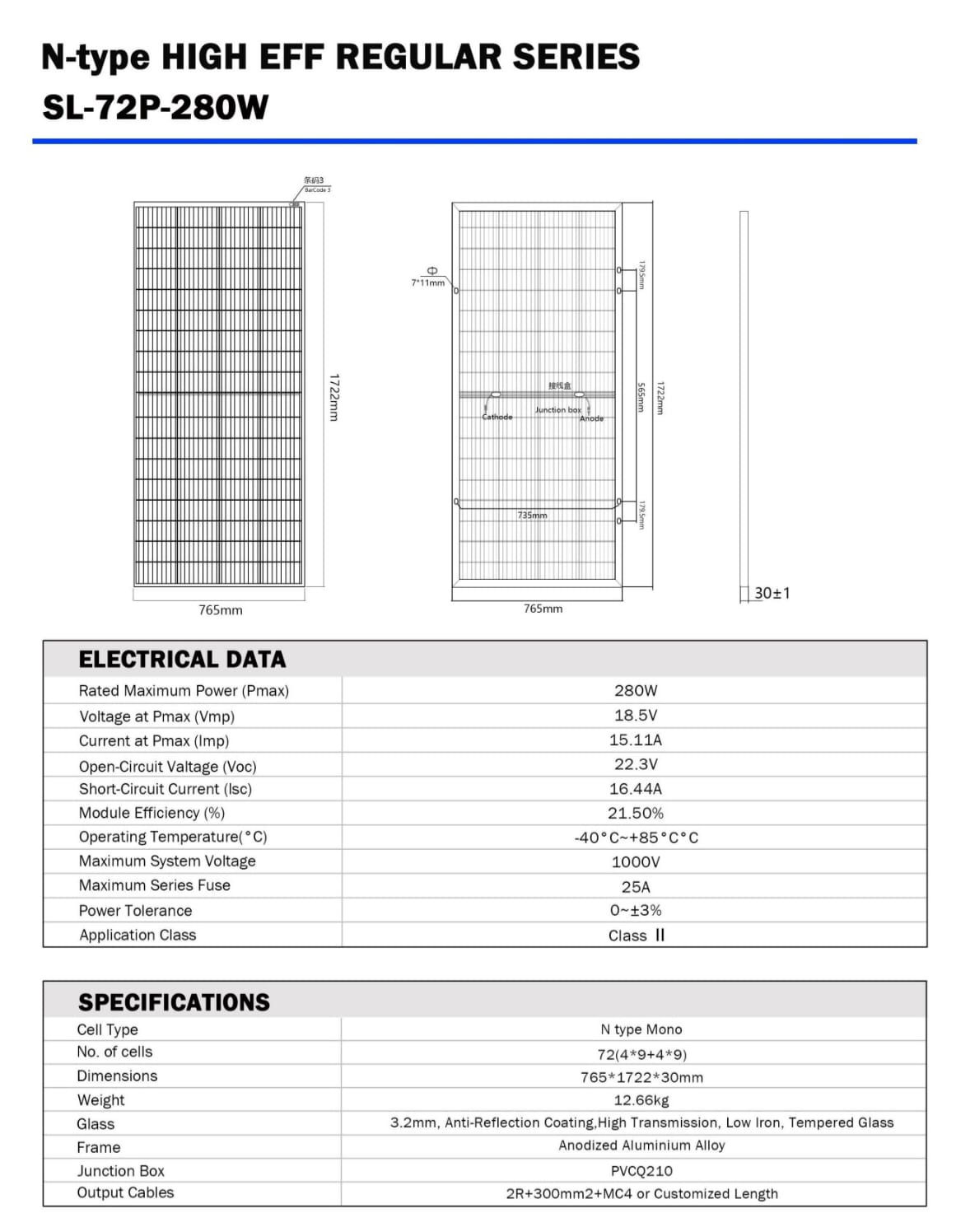

ELECTRICAL DATA Rated Maximum Power(Pmax) 280W Voltage at Pmax (Vmp) 18.5V Current at Pmax (lmp) 15.11A Open-Circuit Valtage (Voo) 22 3v Short-Circuit Current (Isc) 16.44A Module Efficiency (%) 21.50% Operating remperature( C) -40° C~+85 °C°C Maximum System Voltage 1000V Maximum Series Fuse 25A Power Tolerance 0~+3% Application Class Class I|

SPECIFICATIONS Cell Type N type Mono No. of cells 72(4*9+4*9) Dimensions 765*1722*30mm Weight 12.66kg Glass 3.2mm, Anti-Reflection Coating,High Transmission, Low Iron, Tempered Glass Frame Anodized Aluminium Alloy Junction Box PVCQ210 Output Cables 2R+300mm²+Mc4 r Customized Length
