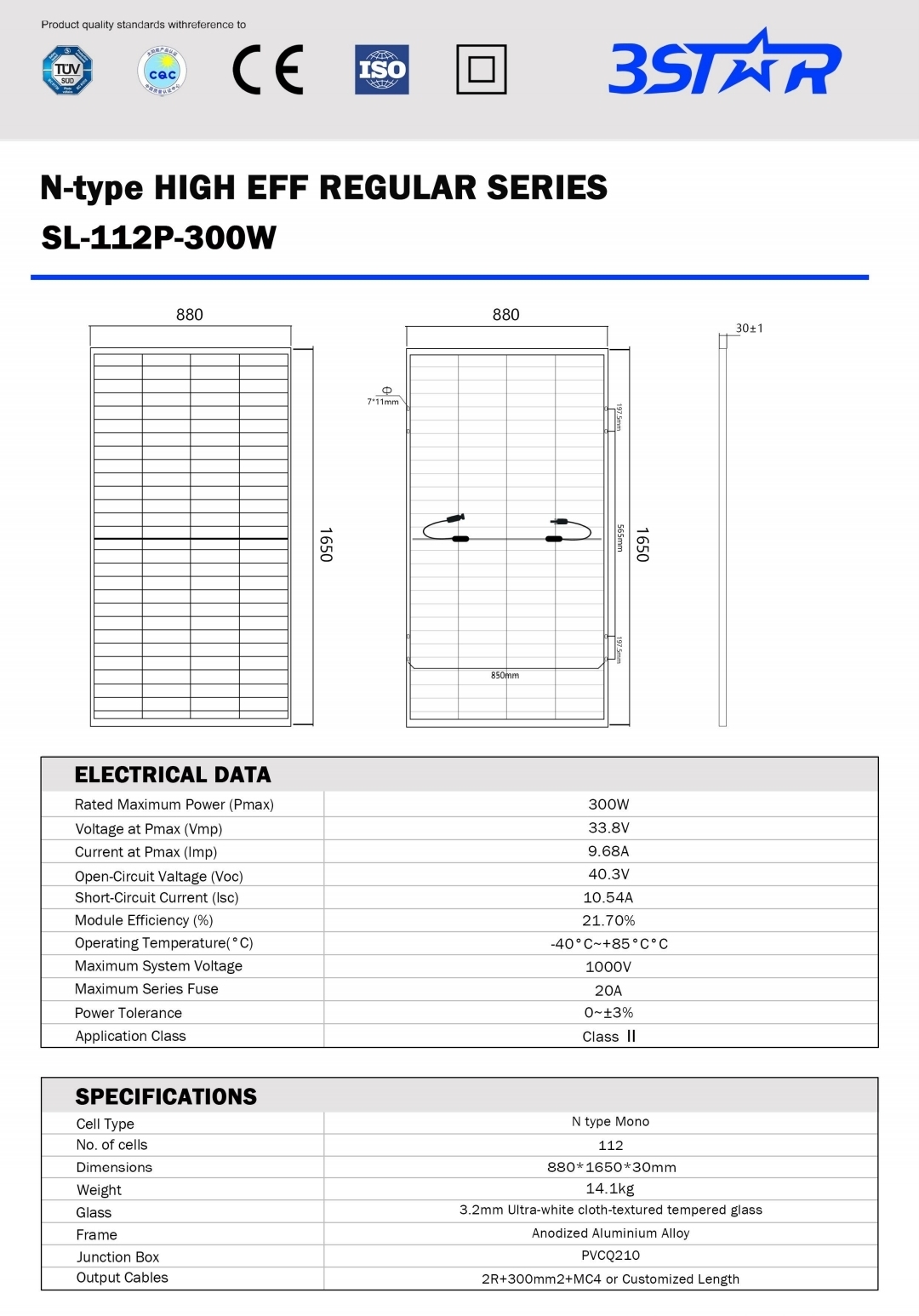

ELECTRICAL DATAR

ated Maximum Power (Pmax) 300W

Voltage at Pmax (Vmp) 33.8V

Current at Pmax (lmp) 9.68A

Open-Circuit Valtage (Voc) 40.3V

Short-Cirouit Curent (sc) 10.54A

Module Efficiency (%) 21.70%

Operating Temperature( C -40° C~-+85 °C °C

Maximum System Voltage 1000V

Maximum Series Fuse 20A

Power Tolerance 0~+3% Application Class Class

SPECIFICATIONS Cell Type N type Mono No. of cells 112

Dimensions 880*1650*30mm

Weight 14.1kg Glass 3.2mm UItra-white cloth-textured tempered glass Frame Anodized Aluminium Alloy Junction BOX PVCQ210 Output Cables 2R+300mm²+MC4 or Customized Length
